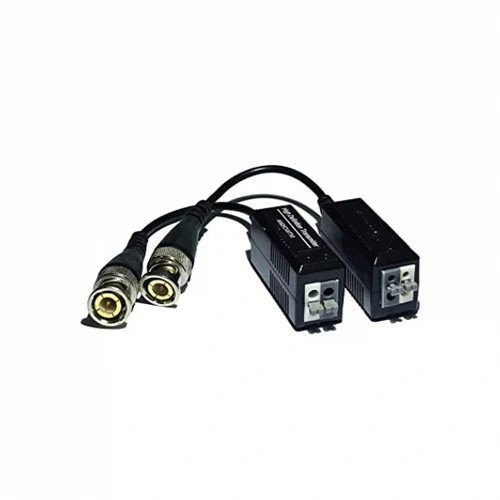

CCTV Video Balun CAT5/6 UTP For HD Cameras AHD, HD TVI, CVI 720P 1080P - *Pack of 4 Pairs*
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
Discount Price:
R220.00
/1
Share:
Secure & Fast Delivery
Fastway Couriers Available
Cash on Delivery:
Available
Refund:
Payment:
Recently viewed products
-
24 x DC plugs with terminals
R170.00
Top Selling Products
-
IDS Rapid Battery Charger
R899.00 -
ALUMINIUM 2 PANEL SLIDING DOOR 1.5X2.1M
R2,149.00
*Pack of 4 Pairs*
CCTV Video Balun CAT5/6 UTP For HD Cameras AHD, HD TVI, CVI 720P 1080P
2 in a pack
✅ Features:
-
Compatible with AHD / CVI / TVI signals
-
Transmission resolution: 720P / 1080P
-
Supports cables: CAT 5 / 5e / 6
-
Transmission distance:
-
Up to 300m for CVI / AHD
-
Up to 200m for TVI
-
-
No external power required
-
Built-in surge and transient protection
-
Strong interference rejection
? Specifications:
? Physical Properties:
| Item | Specification |
|---|---|
| Dimensions | 13.7mm × 11.6mm × 3mm |
| Shell | ABS plastic |
| Color | Black |
| Net Weight | 60g |
? Stability:
| Item | Specification |
|---|---|
| MTBF | >10,000 hours |
? Environmental:
| Item | Specification |
|---|---|
| Operating Temp. | -10°C to 55°C |
| Storage Temp. | -20°C to 70°C |
| Humidity | 0–95% (non-condensing) |
? Video Transmission Properties & Ports:
| Item | Specification |
|---|---|
| Transmission Signal | 1 channel |
| Transmission Distance | AHD/CVI: 300m max; TVI: 200m max |
| Cable Category | UTP CAT5 / 5E / 6 |
| Coaxial Video Connector | BNC-M |
| Twisted-Pair Video Connector | Push-terminal |
| Compatible Formats | AHD / HDCVI / HDTVI |
| Supported Resolution | 720P / 1080P |
| Anti-interference | >60dB |
⚡ Protection:
| Item | Specification |
|---|---|
| ESD Protection | Contact discharge: Level 3 |
| Air discharge: Level 3 (Per: IEC61000-4-2) | |
| Coaxial Cable Protection | 2KV (common mode) (Per: IEC1000-4-2) |
| UTP Cable Protection | 2KV (differential), 4KV (common) (Per: IEC1000-4-5) |
? Impedance:
| Connector | Impedance |
|---|---|
| BNC Male | 75 Ohms |
| UTP Cable | 100 Ohms |
