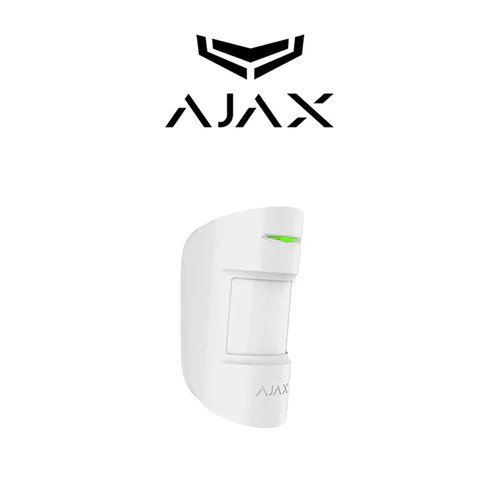

Ajax CombiProtect - Wireless Indoor Motion and Glass Break Detector

Ajax CombiProtect - Wireless Indoor Motion and Glass Break Detector

Ajax CombiProtect merges the capabilities of two types of detectors: a motion detector and a glass break detector. It can sense movement within a room from as far away as 12 meters and can recognize shattered glass up to 9 meters from the window. It is designed to disregard the motions of pets, air drafts, and cooling systems.

• Detects movement from a distance of 12 meters

• Senses broken glass from a maximum of 9 meters

• Offers authentication to prevent fraud

• Body designed to resist tampering

• Detector responses can be monitored every 12 to 300 seconds (can be adjusted)

• Capable of detecting jamming, encrypts communication channels, and verifies authentication

• Three sensitivity settings are adjustable

• Utilizes the SmartMotion algorithm to prevent false alerts from pets under 20 kg

• Functions effectively in various conditions due to digital temperature adjustment

• Employs dual-frequency detection of glass breakage to minimize false alarms

• Battery life extends to 7 years

• Installation using SmartBracket mounts does not require opening the unit

• Connection quality and detection coverage can be tested remotely

• Connects to the Ajax Hub with a single click

Detector type: Wireless

Purpose: Indoor

Distance for movement detection: Up to 12 meters (39. 4 feet)

Sensitivity levels for movement and glass break detection: Three adjustable levels (low, medium, high)

Angle of detection for movement: Horizontal 88. 5° / Vertical 80°

Recommended installation height: 2. 4 meters (7. 9 feet)

Pet-sensitive option: For pets weighing up to 20 kg and measuring up to 50 cm in height

Distance for glass break detection: Up to 9 meters (29. 5 feet)

Detection elements: Pyrosensor (for movement), electret microphone (for glass break detection)

Tamper resistance: Yes

Radio signal strength: 20 mW

Communication protocol: Jeweller (868 or 915 MHz depending on the region)

Power source: CR123A battery

Battery voltage: 3 V

Battery lifespan: Up to 5 years

Operational temperature range: From 0°С (+32°F) to +50°С (+122°F)

Humidity tolerance: Up to 80%

Dimensions: 110х65x50 mm (4. 33x2. 55x1. 96 in)

Package includes: MotionCombiPlus motion detector, CR123A battery, installation kit, user manual.
