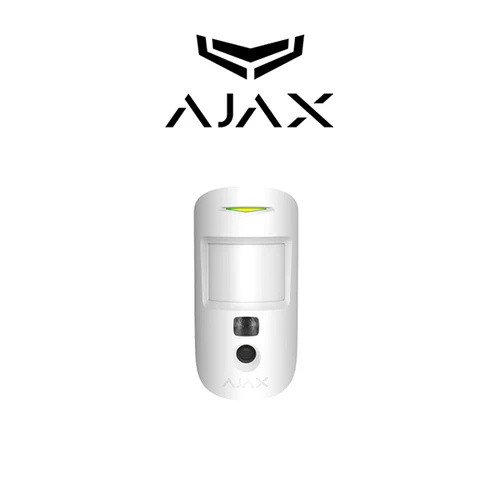

Ajax MotionCam Detector: Wireless Motion Detection with Photo Verification

The Ajax MotionCam detector is an advanced, wireless motion sensor that not only detects intrusions but also sends photo verification to give you a clear picture of the situation in your home or office. Exclusive to Hub 2, the Ajax MotionCam detector allows you to instantly assess any triggered alarms by sending images in less than 9 seconds, so you're always in the know before the intruders even realize they're caught.

Key Features of the Ajax MotionCam Detector

Instant Photo Verification for Quick Assessment

The Ajax MotionCam is designed to provide immediate visual confirmation. When the detector senses motion, it sends a series of up to 5 photos within seconds, allowing you to visually verify the situation. This feature ensures you're not left wondering whether the alarm was triggered by an intruder, pet, or something else entirely.

Low Light Capability for Round-the-Clock Security

With Ajax MotionCam, you can monitor your property at any time of the day or night. The Ajax MotionCam includes an infrared (IR) backlight that allows it to capture clear images even in low light conditions. Whether it's day or night, your property remains secure with reliable image capture.

Long Battery Life and Range

The Ajax MotionCam is powered by two CR123A batteries, which provide up to 4 years of operation, making it an efficient and low-maintenance option. The Ajax MotionCam also boasts an impressive wireless range of up to 1700 meters to the Hub 2, depending on the environment and line of sight.

Pet Immunity and Adjustable Sensitivity

The Ajax MotionCam is designed to detect only relevant motion. It includes a pet immunity feature that prevents false alarms caused by pets under 20 kg in weight and 50 cm in height. The sensitivity is adjustable across 3 levels, allowing you to tailor the detection to your specific environment.

Fast Alarm Transmission and Secure Communication

When motion is detected, the Ajax MotionCam sends an alarm signal to the Hub 2 in just 0.15 seconds. It uses the Jeweller radio protocol for two-way communication, ensuring that the signal remains strong and secure, even over long distances. The Ajax MotionCam operates on frequencies between 868.0–868.6 MHz and uses AES encryption for enhanced security.

Anti-Sabotage and Tamper-Resistant

The Ajax MotionCam is built with tamper-resistant features, including fraud detection and jamming alerts. If someone attempts to interfere with or disable the device, the system will notify you immediately. The Ajax MotionCam provides round-the-clock protection against sabotage.

Specifications

• Detection Range: Up to 12 meters (39 feet)

• Pet Immunity: Yes, for pets under 20 kg and 50 cm

• Camera Field of View: 90°

• Alarm Transmission Time: 0.15 seconds

• Photo Transmission Time: Up to 9 seconds

• Photo Resolution: 640 x 480 pixels

• Images in Sequence: 1-5

• Sensitivity: Adjustable (3 levels)

• Operating Temperature Range: 0°C to +40°C (32°F to 104°F)

• Battery Life: Up to 4 years (CR123A x2)

• Wireless Communication Range: Up to 1700 meters (line of sight)

• Communication Protocol: Jeweller (868/915 MHz)

• Encryption: AES encryption

• Anti-Tamper Features: Jamming detection, fraud protection

• Protection Rating: IP50

• Humidity Tolerance: Up to 75%

• Dimensions: 135 x 70 x 60 mm (5.3 x 2.8 x 2.4 inches)

• Weight: 167 grams

Package Contents

• Ajax MotionCam detector

• 2 x CR123A batteries (installed)

• SmartBracket mounting panel

• Installation kit

• Quick Start Guide

Why Choose the Ajax MotionCam Detector?

The Ajax MotionCam detector offers advanced motion detection paired with photo verification, making it one of the most efficient and reliable motion detectors on the market. By providing instant visual verification of any triggered alarms, the Ajax MotionCam helps you make informed decisions without unnecessary delays. Whether you're at home or on the go, this smart device keeps you connected and in control, giving you peace of mind knowing that your property is secure.
