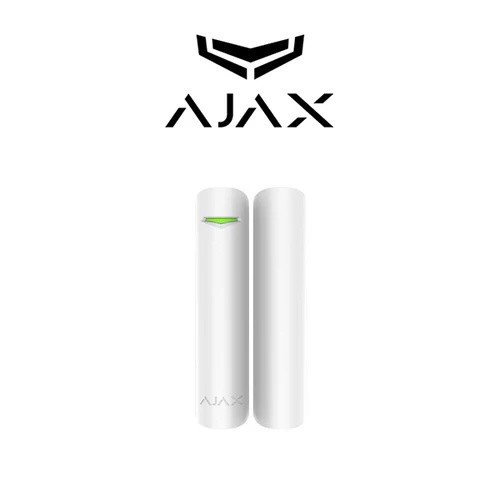

Ajax DoorProtect Plus - Wireless Door Contact and Tilt Sensor

Ajax DoorProtect Plus - Wireless Door Contact and Tilt Sensor

AJAX DoorProtect Plus - Magnetic opening sensor with shock and tilt detection

A wireless magnetic sensor that alerts you to the initial signs of unauthorized entry through a door or window.

Optimal performance:

• Measures the angle of tilt in relation to the ground

• Integrated accelerometer responds to shaking and impacts

• Can connect to other external detectors

Defense against unauthorized access and malfunctions:

• Employs authentication to prevent fraud

• Body designed to resist tampering

• Check responses from detectors every 12-300 seconds (customizable)

• Detects jamming, utilizes frequency-hopping

• Operates over an encrypted link

Efficient functionality:

• Features British-made reed switches capable of toggling over 1,000,000 times without issue

• Two-way communication with Ajax Hub enables regular testing and adjustments

• Conserves energy by managing power use based on its distance from the Ajax Hub

• Battery lasts up to 5 years with a ping rate of once per minute

Easy expert installation:

• No need to open the body during installation with SmartBracket mounts

• Employs robust magnets that can be placed up to 2 cm away from the main device

• The connection quality and detection range can be tested remotely

• Connects to Ajax Hub with just one click

Engineering marvel:

• The compact design and strong magnet make Ajax DoorProtect Plus the perfect detector for safeguarding various types of doors and windows

Product Details:

• Detector type: Wireless
• Mounting: Surface-mounted
• Detection components: Reed switch, accelerometer
• Distance to magnet: Up to 1 cm (0. 4 in) (small magnet), up to 2 cm (0. 8 in) (large magnet)
• Usage: Indoor
• Compatibility: Operates exclusively with Ajax Hub
• Extra input for wired detectors: Yes
• Tamper protection: Yes
• Radio signal output: 20 mW
• Communication method: Jeweller (868. 0−868. 6 MHz)
• Maximum range between the sensor and central unit: Up to 1,000 m (6562 ft) (in open space)
• Power source: CR123A battery
• Voltage: 3 V
• Battery duration: Up to 5 years
• Operating temperature range: From 0°С (+32°F) to +50°С (+122°F)
• Humidity tolerance: Up to 80%
• Dimensions: 20х90 mm (0. 78x3. 54 in)
• Included in the package:
• DoorProtectPlus opening sensor
• Small and large magnet
• CR123A battery
• External contact
• Installation kit
• User manual.
