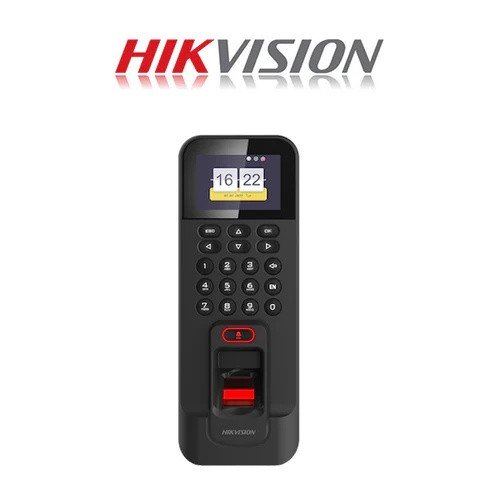

Enhance security and streamline attendance management with the Hikvision fingerprint access terminal. This advanced device is designed for workplaces, schools, offices, and industrial facilities where both access control and time tracking are required. With high-performance fingerprint recognition and multiple authentication options, this fingerprint access terminal ensures fast, stable, and reliable entry management.
This fingerprint access terminal supports up to 3000 users, 3000 stored fingerprints, and 100,000 event logs, making it ideal for medium to large organizations. It works independently without requiring a dedicated server, and you can easily add users, cards, and fingerprints directly from the device.
Attendance and access data can also be exported via USB, helping you track employee work hours efficiently. Whether you need security control at entry points or automated attendance reports, this fingerprint access is built to deliver accuracy and convenience.
Combined Access & Attendance Control in one terminal
2.4-inch LCD display for clear viewing of time and authentication results
Supports remote fingerprint enrollment directly from management software
Capacity: Up to 3000 users, 3000 fingerprints, and 100,000 event logs
Works in stand-alone mode — manage data locally without a server
Export attendance logs and swipe records to a USB drive
Supports up to 32 work shifts and 32 man-hour shift schedules
Tamper alarm & duress alarm for enhanced security
Can connect to third-party alarm systems and doorbells
Supports Wi-Fi and TCP/IP connectivity for easy network integration
| Category | Details |
|---|---|
| Model | DS-K1T804 |
| Type | Fingerprint Access Terminal & Time Attendance |
| Operating System | Linux |
| Fingerprint Capacity | 3000 fingerprints (Up to 10 fingerprints per user) |
| User Capacity | 3000 users |
| Event Log Capacity | 100,000 records |
| Card Support | Mifare (Including Special Shapes) |
| Display | 2.4-inch LCD (320×240) |
| Recognition Speed | < 1 second |
| FRR | ≤ 0.01% |
| FAR | ≤ 0.001% |
| Communication | TCP/IP, Wi-Fi, RS-485, Wiegand Input/Output |
| USB Support | USB 2.0 Export |
| Power Supply | 12V DC / 2A |
| Audio/Visual Alerts | Buzzer + Speaker + LED Indicators |
| Tamper Protection | Supported |
| Water Resistance | IP42 |
| Operating Temperature | -10°C to 55°C |
| Installation | Wall Mount / Metal Door Mount / Gang Box Compatible |
| Dimensions | 205 × 76.5 × 37 mm |
The Hikvision fingerprint access terminal delivers reliable identity verification, accurate attendance monitoring, and secure access control in one efficient device. With its large storage capacity, fast fingerprint recognition, and simple configuration options, it is well-suited for offices, industries, schools, shops, and corporate environments.
