Hikvision Mag Lock Kit - One Door with Battery Backup (Excluding Terminal)

Secure your door with confidence using the Hikvision mag lock kit, designed for reliable access control and strong door holding power. This kit includes all essential components needed to lock, secure, and operate one entrance door with backup power support — ideal for offices, homes, commercial buildings, and restricted access areas.

The Hikvision mag lock provides powerful 280kg holding force, ensuring that your door remains firmly secured. Combined with a no-touch exit sensor and a backup power supply, this kit maintains protection even during power outages, keeping your security system running continuously.

Why Choose Hikvision Mag Lock?

Using a Hikvision mag lock means improved security, safer entry management, and ease of installation. The system supports multiple door materials such as wooden, steel, and glass doors. With weather-resistant components and a durable design, this locking solution is built for long-term security performance.

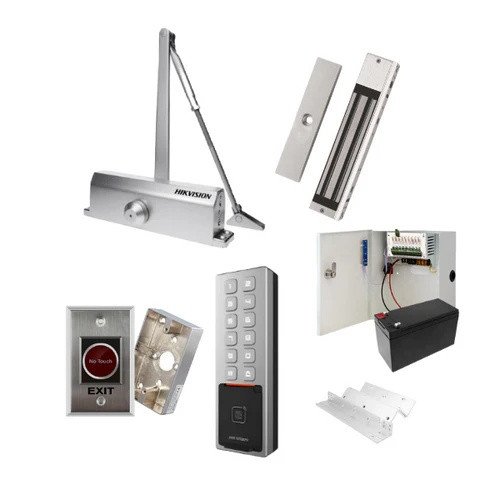

Main Components

Item	Description
DS-K4H258-LZ Bracket	Special mounting bracket for the Hikvision mag lock, suitable for wooden and metal door installations.
DS-K4H258S Magnetic Lock	Strong 280kg holding force, operates at 12VDC, suitable for wooden, steel, and glass doors with a 90° opening angle. Door status indicator included.
DS-K4DC104 Door Closer	Supports doors 60-85kg, 1100mm width, EN4 strength rating, allows smooth closing up to 180° opening. Works in temperatures from -30°C to 50°C.
GS12035DC-UPS-PL Power Supply	DC UPS power supply system providing 12VDC & 13.8VDC, 3.5 Amp, flame-retardant and safety compliant with SANS IEC62368-1.
G-MAX7 Battery	12V 7Ah sealed AGM backup battery for power outage emergency operation.
NF-70 No-Touch Exit Sensor	Hands-free exit system for hygiene and convenience.
NF-70 BM Backbox	Mounting box for the no-touch sensor.

Specifications

Specification	Details
Lock Type	Hikvision Mag Lock (Single Door)
Holding Force	280kg (High Strength Magnet)
Operating Voltage	12VDC
Door Compatibility	Wooden, Glass, and Metal Doors
Opening Angle	90° for magnetic lock / 180° door closer
Power Supply	DC UPS with built-in charging function
Backup Battery	12V 7Ah AGM Battery Included
Exit Method	No-Touch Infrared Sensor
Installation	Surface and bracket mount supported
Usage Application	Offices, Homes, Shops, Schools, Commercial Buildings
