11KVA / 11000W 48V Hybrid Inverter Plug & Play System with 5.12kWh Lithium Battery (SOLAR READY)

11KVA / 11000W 48V Hybrid Inverter Plug & Play System with 5.12kWh Lithium Battery (SOLAR READY)

What does an all-in-one, plug-and-play, Solar Ready inverter system do?

When there is load shedding, it is an inverter unit powered by a battery. It will begin charging your battery as soon as the electricity is turned on. When load shedding occurs, your inverter system immediately switches to battery power. With this, you will be able to continue using your lights, TV, computers, chargers, and Wi-Fi throughout load shedding. Prepared for solar: When there is no power, connect a solar panel and charge your batteries.

When the electricity is out, how much backup battery power will I have?

If you connect 500w, which is often a TV, WIFI, lights, etc. With a 100% DOD, this portable system will run for 1620 hours.

The combination consists of:

1. One Ecco Hybrid Inverter with 11 KVA
2. 1x Ecco Lithium Battery, 5. 12 kWh
3. Transportable box with two locking wheels.
4. Disconnector and 160A battery fuse
5. power outlet with a surge plug (ac in)
6. Dual Female Connector (ac out / output power)

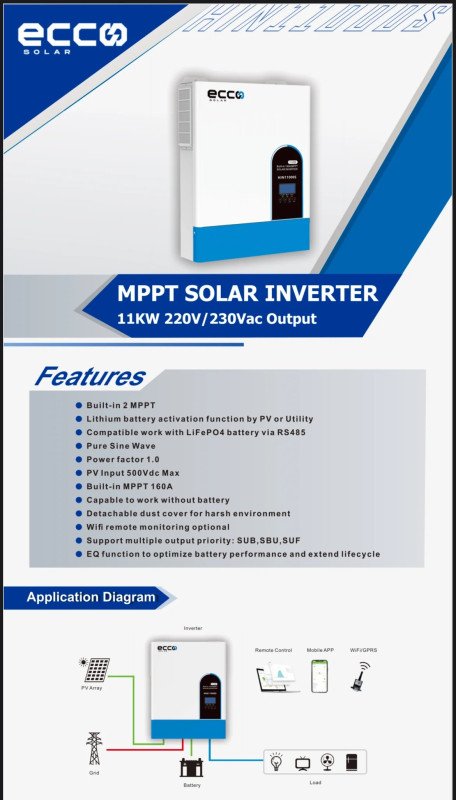

Specifications for the Inverter (HIN11000S)

• Model: Ecco MPPT Hybrid Inverter (Pure Sine Wave), 11 KVA / 11000 W

Important Attributes:

• Integrated 2 MPPT
• PV or Utility-based activation of lithium batteries
• Via RS485, it is compatible with LiFePO4 batteries.
• Power factor: 1. 0
• Maximum PV Input: 500Vdc
• MPPT 160A is integrated into the system.
• capable of running without a battery
• A dust cover that may be removed for use in extreme conditions
• Remote monitoring via WiFi (optional)
• Several output priority modes are supported: SUB, SBU, and SUF.
• By maximizing battery performance and extending its lifespan, the EQ function improves battery usage.

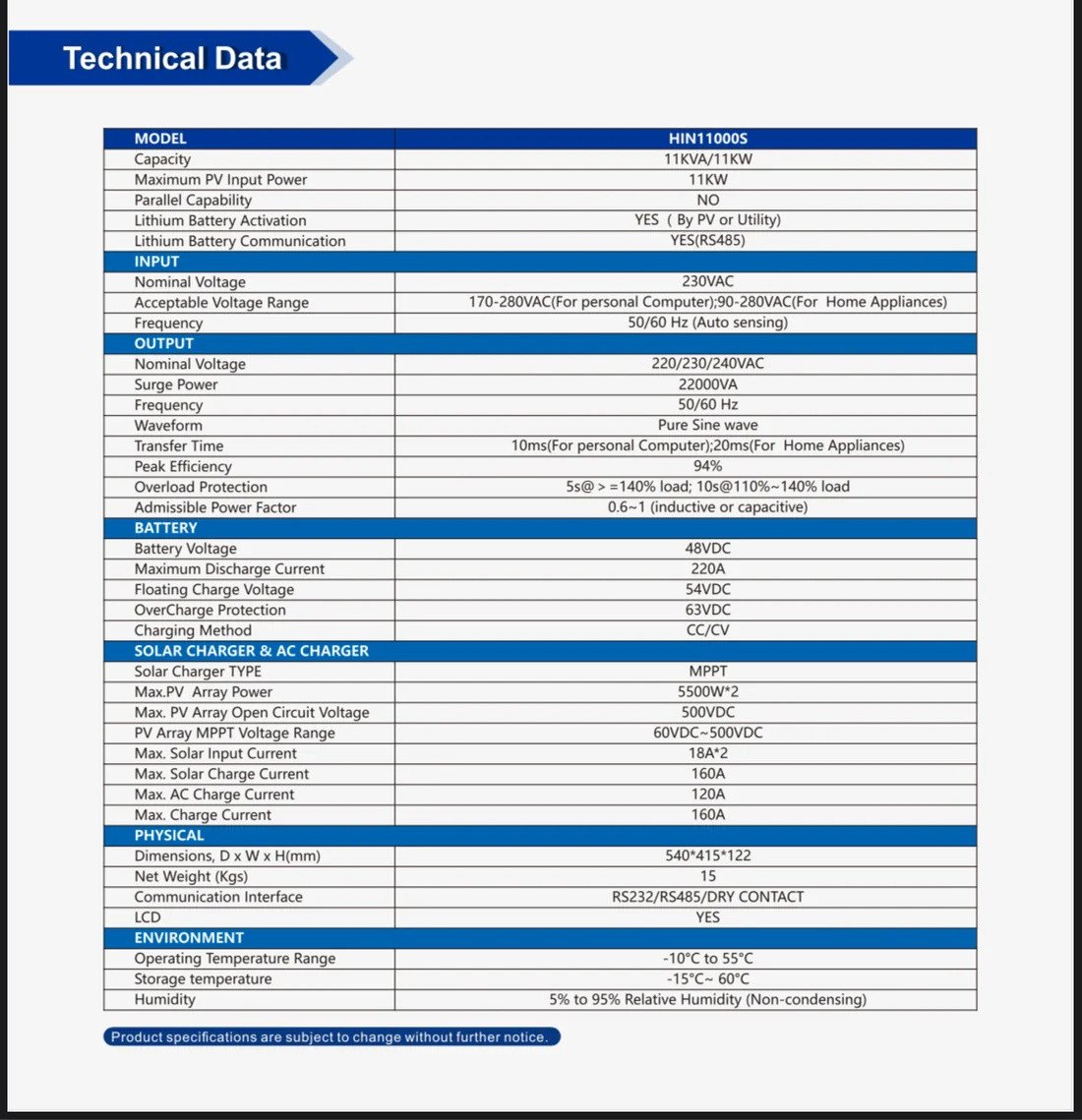

Technical Details:

• Capacity: 11 KVA / 11 kW
• Maximum input power for photovoltaics: 11 kW
• No Parallel Ability
• lithium battery activation: Yes (via PV or Utility)
• Communication via lithium battery: Yes (RS485)

Input:

• Nominal Voltage: 230VAC
• Voltage Range Acceptable:
• 170280 volts AC (for personal computers)
• 90280 VAC (for home appliances)
• 50/60 Hz is the frequency (Auto Sensing)

Output:

• The nominal voltage is between 220, 230, and 240 volts alternating current.
• Power Output: 2200 VA
• 50/60 Hz is the frequency.
• Waveform: Ideal Sine Wave
• Time of Transfer:
• 10 milliseconds (for computers)
• 20 milliseconds (for household appliances)
• Highest Efficiency: 94%
• Overload Protection: 5 seconds at 140% Load

Battery:

• Voltage: 48 V
• Max Discharge Current: 220 A
• The voltage of the floating charge is 54 volts DC.
• Overcharge Protection: 63 VDC
• Technique for charging: CC/CV

Solar and AC Charging:

• The Solar Charger Kind: MPPT
• 5500W is the maximum power output of the two PV arrays.
• Voltage at Open Circuit: 500 VDC (Maximum PV)
• Voltage range of MPPT: 60VDC to 500VDC
• The maximum solar input current is 18 amps multiplied by two.
• The Maximum Solar Charge Current is 160A.
• Maximum AC Charging Current: 120 A
• Max Charge Current: 160 A

Physical and communication:

• Size (mm): 540 x 415 x 122
• 15 kg net weight
• Dry contact, RS232, and RS485 are the possible communication interfaces.
• LCD screen

Lithium Battery (Ecco 51. 2V 100Ah 5. 12kWh W51100 – Wall Mounted)

Key Attributes:

• Wall-mounted construction is both visually appealing and simple to set up.
• Lithium Iron Phosphate (LiFePO4) cells – safe, long life cycle
• The maximum rate of charge/discharge for Max 1C.
• interface that is easy to use
• works with a variety of inverter manufacturers
• There may be as many as sixteen parallel groups supported.
• Compliant with EU TUV and North American UL criteria

Benefits:

• Extended Cycle Life: Leadacid batteries have a lifespan that is 20 times longer in terms of cycle life and 5 times longer in terms of float/calendar life.
• Lower Weight: roughly 40% that of comparable lead-acid batteries
• Higher Power: Twice as powerful as lead-acid batteries with the same high energy capacity
• Temperature Range: 20°C to 60°C
• Superior Safety: Eliminates the possibility of explosions or fires caused by impacts, overcharging, or short circuits

The Box's Contents

• Battery
• Mounts and battery wires

Battery Characteristics:

• Battery Type: Choose "USE"
• Bulk Charge Voltage: 56. 456. 6 V
• 54 volts is the float charge voltage.
• 47 V is the cutoff voltage.

Technical Details:

• 51. 2V is the nominal voltage.
• Nominal Capacity: 100 Ah
• The total power is 5. 12 kWh.
• Optimal Operating Voltage Range: 43V to 54. 5V
• Yes, there is short circuit protection.
• Reverse Connection Protection Upon Power On: Not Required
• Maximum Voltage for Charging: 57. 6 V
• Optimal Charging Voltage: 56. 4 V (recommended)
• Maximum Continuous Output Power: 5500 W
• Maximum Instantaneous Output Power: 7500W
• Local Parameter Setup: Supported
• Maximum installation dimensions (mm): 480 x 170 x 500
• Package Dimensions (mm): 590 x 290 x 615
• 49 kg
• IP Rating: IP54
• Communication: RS232, RS485, CAN
• Lifespan: 15 years

Installation Needs & Guarantees

• Warranty of five years
• A skilled electrical wireman or master electrician who has a current registration with the Department of Labor must do the installation.
• Following installation, a valid Electrical Certificate of Compliance (COC) must be granted that is particular to the solar or backup system.
• The installation must adhere to all aspects of SANS 10142.
• The following items are necessary for warranty claims:
• Images of the installation
• A valid COC
• evidence of installation by a licensed electrician or master electrician
• A warranty may be null and void if the aforementioned is not provided.
