1000W ECCO Hybrid Inverter UPS - 12V Pure Sine Wave

1000W ECCO Hybrid Inverter UPS - 12V Pure Sine Wave

Overview:

Dependable Solar Power Conversion

The Ecco 1000W Pure Sine Wave Inverter provides reliable and effective power for a variety of minor backup power requirements. This inverter is made for home and mobile solar installations and delivers 1000W of continuous power with a pure sine wave output, guaranteeing compatibility with delicate devices. The length of time the battery back up will last during power outages is determined by the continuous output power.

Major attributes include:

• Pure sine wave output – guarantees a consistent and clean power supply for delicate electronics and household appliances.
• Perfect for tiny to medium-sized solar power systems, with 1000W of continuous power.
• 30A charging current and 12V DC input provide effective battery charging and performance.
• A broad range of PV input voltages (15 V to 44 V) allows for flexibility in the arrangement of solar panels.
• The maximum PV input voltage is 50V, which means that it can handle a variety of solar input situations.
• Automatic Voltage Regulation (AVR) – It automatically modifies the load capacity to ensure the best possible performance.
• Features for Advanced Protection:
• Overload protection (100120% for 30 seconds, >120% for 100 milliseconds, and >150% for 50 milliseconds).
• short circuit protection (response time less than 150 microseconds).
• Over/under voltage protection for the input and output.
• Low voltage and surge protection for batteries.

Technical Details:

• Input Voltage: 220/230 V AC (+25%, -35%)
• Output Voltage Regulation: 220/230V ± 10% (Automatic Adjustment)
• 50/60 Hz, plus or minus 0. 5, is the frequency.
• Transfer Time: Less Than 9 milliseconds
• Type of Battery: Lead acid battery that is sealed and requires no upkeep
• Current for Recharging: 8–13A
• Size: 370mm (D) x 240mm (W) x 140mm (H)

Note about Battery Performance:

• Even a 1% drop in battery level causes the inverter's display battery bars to decrease gradually. Use a multimeter to obtain accurate voltage measurements.

What's Included:

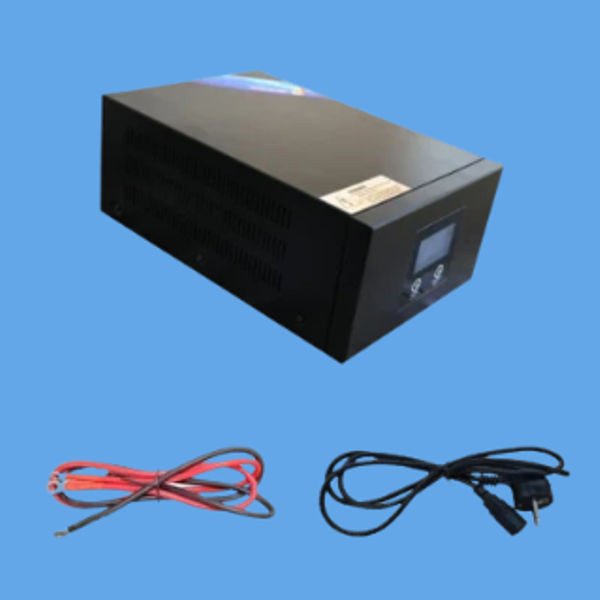

• 1 × Ecco 1000W 12V/30A Pure Sine Wave Solar Inverter
• User Guide: 1
• 2 Battery Cables

Requirements for Installation and Warranty:

• Manufacturing faults are covered by the 1-year warranty.
• To adhere to SANS rules, a competent electrician must perform the installation.
• Warranty claims require a valid Certificate of Compliance (COC).
