Ecco 11KVA / 11000W MPPT Hybrid Inverter Pure Sine Wave

Ecco 11KVA / 11000W MPPT Hybrid Inverter Pure Sine Wave

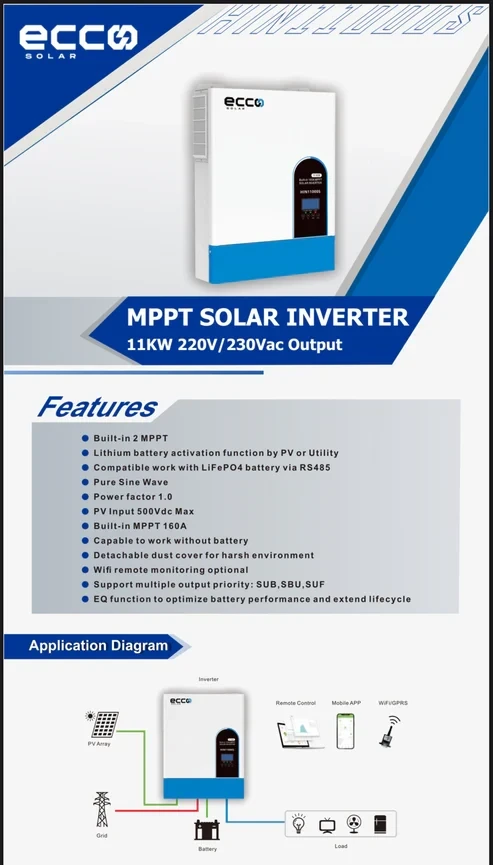

The 11KVA / 11000W Ecco MPPT Hybrid Inverter is a dependable, high-performance energy solution that has a pure sine wave output and two integrated MPPT for effective solar energy management. It supports LiFePO4 batteries and offers sophisticated power capabilities such as a 94% peak efficiency rate, overload protection, and remote WiFi monitoring. It also has lithium battery activation via PV or utility. With a broad voltage range, rapid transfer times, and great durability for harsh conditions, this inverter is ideal for backup and off-grid power applications in both residential and commercial settings.

• 2 MPPTs built in
• Lithium Battery Activation Function: Utility or PV Activation
• Using RS485 communication, it works with LiFePO4 batteries.
• Output of a Perfect Sine Wave
• Power Factor: 1. 0
• Maximum PV Input: 500 Vdc
• MPPT integrated: 160A
• able to function without a battery
• Removable Dust Cover: Made to withstand challenging conditions
• WiFi Remote Monitoring as an Option
• Supports a variety of output priorities, including SUB, SBU, and SUF.
• EQ function: maximizes battery performance and extends battery life.

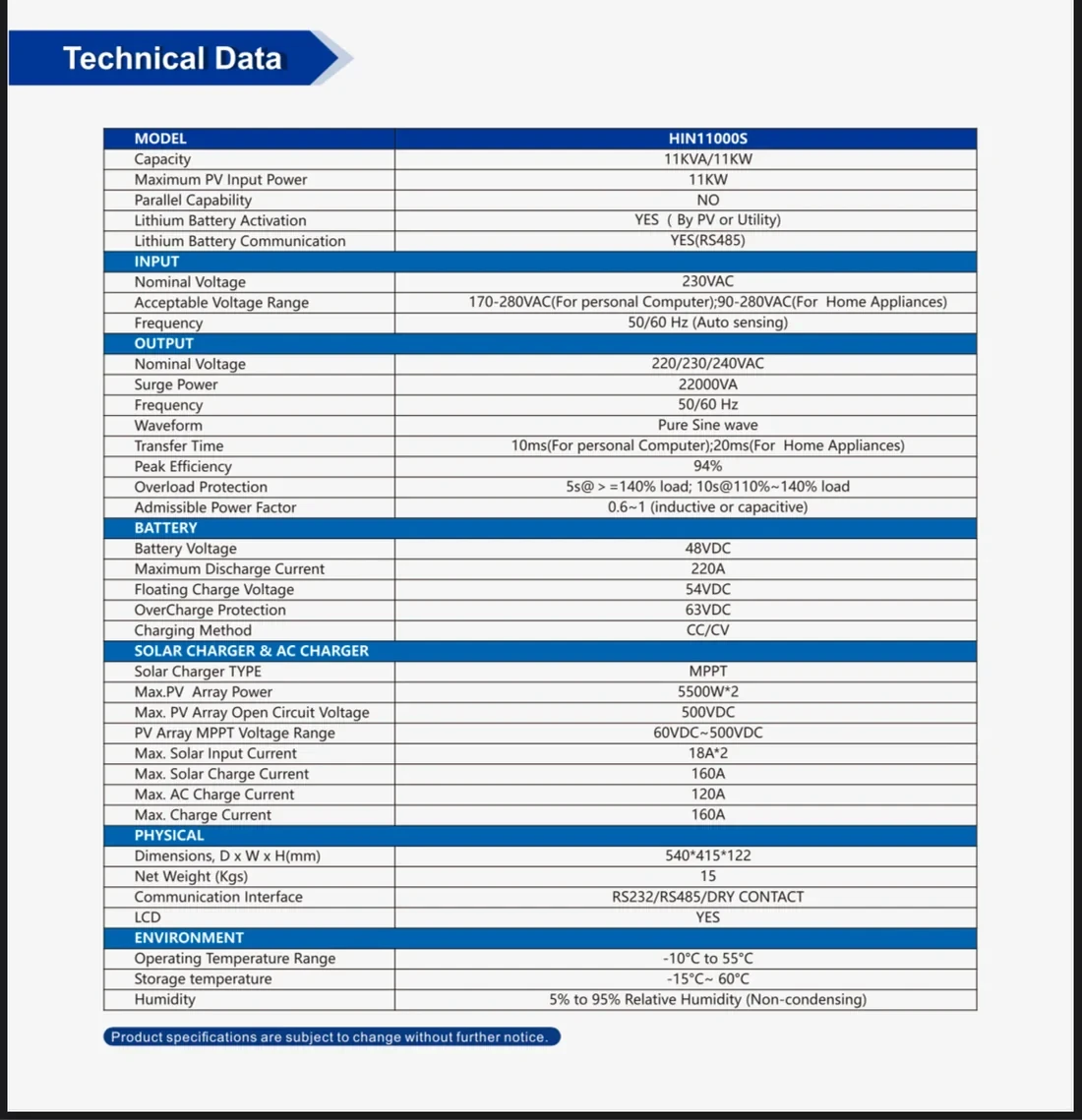

Details:

• HIN11000S is the model number.
• Capacity: 11 kW / 11 kVA
• Maximum PV Input Power: 11 kW
• Parallel Capability: N/A
• Lithium Battery Activation: Yes (by PV or Utility)
• Yes, communication between lithium batteries is possible via RS485.

Input:

• 230 VAC is the nominal voltage.
• Voltage Range That Is Acceptable:
• 170280 VAC (for Personal Computer)
• For household equipment, use 90280 VAC.
• Frequency: 50/60 Hz (Automatic Sensing)

Output:

• Nominal Voltage: 220/230/240VAC
• Power during a surge: 2200 VA
• Frequency: 50/60 Hz
• Waveform: a perfect sine wave
• Transfer Time:
• 10 ms (for computers)
• 20 milliseconds (for home appliances)
• Maximum Efficiency: 94%
• Overload Protection: 5 seconds at 140% load

The battery:

• Voltage of the Battery: 48 volts
• 220 amps is the maximum discharge current.
• 54 VDC is the float charge voltage.
• Overcharge Protection: 63 VDC
• Charging Method: CC/CV

AC Charger and Solar Charger:

• Solar Charger Type: MPPT
• Maximum PV Array Power: 5500W 2
• 500 VDC is the maximum open circuit voltage for a PV array.
• 60 VDC to 500 VDC is the MPPT voltage range for PV arrays.
• Maximum Solar Input Current: 18A 2
• Maximum Solar Charging Current: 160A
• The highest AC charge current is 120 amps.
• Maximum Charge Current: 160 A

Physical:

• Measurements (D x W x H): 540mm x 415mm x 122mm
• 15 kg is the net weight.
• Communication Interface: Dry Contact, RS232, and RS485
• LCD: Available

Warranty

• 5-year warranty
