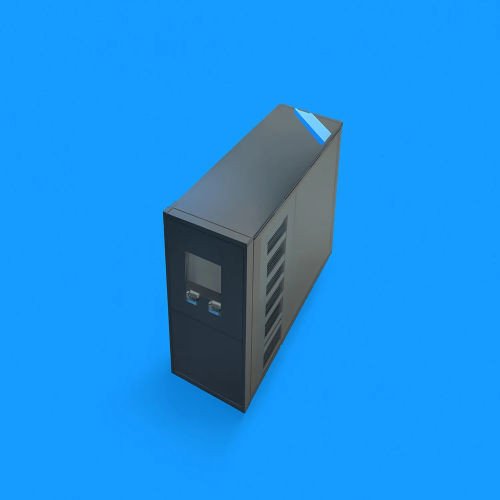

ECCO 2000W Hybrid Inverter UPS - 12V Pure Sine Wave

ECCO 2000W Hybrid Inverter UPS - 12V Pure Sine Wave

Description:

Dependable and Effective Power Backup System

The Ecco 2000W Pure Sine Wave Solar Inverter UPS is made for solar energy systems, emergency supply, and backup power. This adaptable hybrid inverter is perfect for usage in the home, office, and as a backup power source because it transforms 12V DC to a reliable 220V AC output. It guarantees continuous power for vital equipment with its integrated UPS feature and dual charging capability (mains and optional solar).

Main Characteristics:

• Clean Sine Wave Output: Provides steady, consistent power that's ideal for delicate electronics.
• 2000W Continuous Power – Compatible with household appliances, TVs, computers, and lighting.
• UPS Functionality – Seamlessly switches with a transfer time of approximately 4 milliseconds to maintain continuous operation.
• Options for Charging Batteries:
• Integrated 15A Battery Charger – Charges 12V batteries from 220V mains power.
• Solar charging as an option, works with a solar charge controller for off-grid electricity.
• MultiMode Operation:
• Prioritizes battery use in Battery First Mode.
• AC First Mode – switches to battery backup after using mains power.
• Energy-Saving Mode – Maximizes power usage when loads are minimal.
• Temperature-controlled fan of the Intelligent Cooling System minimizes noise and increases longevity.
• Superior Security Safeguards:
• Protection against overload includes automated shutdown and warnings.
• Short circuit protection - Immediate shutdown with alarm.
• High/low voltage detection – Auto shutdown to safeguard connected equipment.
• Reverse polarity protection: This prevents damage caused by erroneous wiring.

Technical Details:

• Input Voltage: 12V DC
• Voltage output: 220 V AC
• Waveform: Perfect Sine Wave
• Rated power: 2000 W
• Transfer Time: Around 4 ms
• Battery Charger: Maximum 15A (integrated)
• Frequency: Low
• Efficiency: Approximately 85%
• ≤3% overall harmonic distortion
• Noise Level: 55 dB or less
• Working Temperature: 10°C to +40°C
• Humidity Tolerance: 0%–95% (noncondensing)
• Dimensions: 400 mm in length, 180 mm in width, and 320 mm in height
• Weight: 18 kg

Battery Performance Remark:

Even a 1% decrease in battery level will cause the inverter's battery indicator to shift gradually. To get precise voltage measurements, use a multimeter.

Included Items:

• One Ecco 2000W Pure Sine Wave Inverter UPS
• 1 × Battery Connection Cables
• 1 × User Guide

Warranty & Installation Conditions:

• 1-year warranty for flaws in workmanship.
• For adherence to SANS rules, expert installation is necessary.
• A valid Certificate of Compliance (COC) is necessary in order to make a warranty claim.
