Load Shedding Backup Solution – Sunsynk 8kW Hybrid Inverter with Shoto Lithium Battery

Stay powered during outages with this reliable Load Shedding Backup system from Ehumu. Combining the Sunsynk 8kW Low Voltage Hybrid Inverter with two Shoto HP10-BOX5 Pro Lithium Batteries, this setup delivers seamless solar energy management, intelligent battery storage, and uninterrupted power supply for your home or business.

ONLINE DEAL ONLY – IN-STORE COLLECTION AVAILABLE ON REQUEST (SAME DAY)

Complete Load Shedding Backup System

This advanced Load Shedding Backup combo is designed to keep your essential appliances running during power interruptions. By integrating solar energy, intelligent battery storage, and a high-performance hybrid inverter, it ensures energy independence, maximizes self-consumption, and provides peace of mind during grid outages.

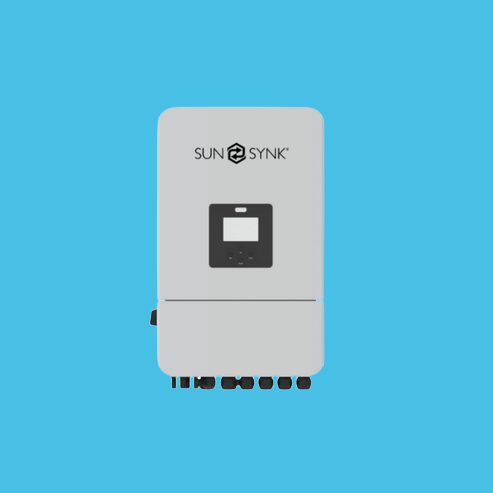

Sunsynk 8kW Hybrid Inverter – Smart Energy Management

The Sunsynk 8kW Hybrid Inverter (SG05LP1 EU SM2) is engineered for residential and commercial solar systems, supporting both lithium and lead-acid batteries. With dual MPPT inputs and a wide PV input range, it optimizes solar energy usage while ensuring reliable backup power during load shedding or grid failures.

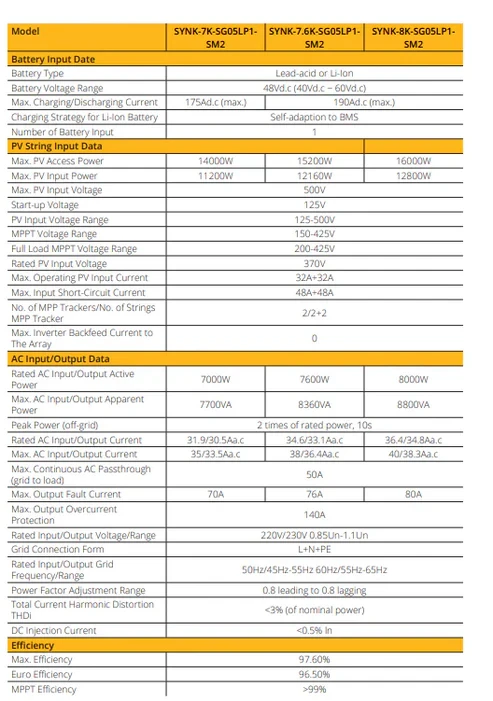

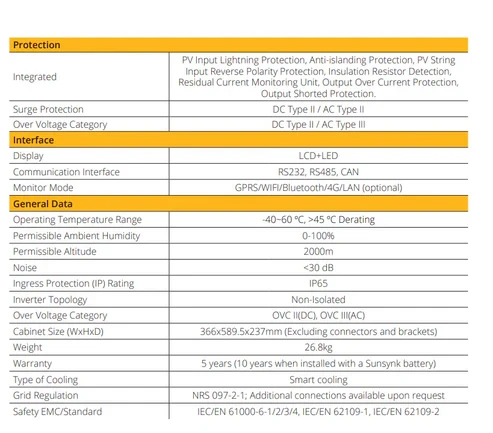

Key Inverter Specifications

• Battery Type: Lead-Acid or Li-Ion

• Voltage Range: 40V – 60V

• Max Charge/Discharge Current: 190A

• Max PV Input Power: 12,800W (16,000W accessible)

• MPPT Voltage Range: 150V – 425V

• PV Voltage Range: 125V – 500V

• Operating PV Current: 32A + 32A

• MPPTs/Strings: 2 MPPTs with 2 strings each

• Mounting: Wall-mounted

• Monitoring: WiFi/GPRS/LAN (dongle optional)

• Protection: Overload, over-voltage, short-circuit, reverse polarity, ground fault

• Cooling: Intelligent fan control

• Operating Temperature: -25°C to 60°C

• Certifications: CE, IEC62109, UN38.3

Shoto Lithium Battery – Reliable Energy Storage

The Shoto HP10-BOX5 Pro Lithium Battery provides 5.12kWh per unit of high-efficiency energy storage. With two batteries in this combo, you get 10.24kWh of scalable, long-lasting storage for uninterrupted Shedding Backup.

Battery Specifications

• Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Nominal Voltage: 48V

• Capacity: 100Ah

• Energy per Battery: 5.12kWh

• Cycle Life: 6,000+ cycles at 80% DoD

• Efficiency: >95%

• Max Charge Voltage: 54V

• Cut-Off Voltage: 42V

• Max Charge/Discharge Current: 100A (recommended 50A)

• Operating Temperature: -20°C to 55°C

• Weight: 58kg

• Dimensions: 580 × 250 × 440 mm

Advanced Battery Management

Each Shoto Lithium Battery features a built-in Battery Management System (BMS) to:

• Prevent overcharge, over-discharge, and short-circuits

• Protect against overcurrent and extreme temperatures

• Balance cells for long battery life

• Support series and parallel expansion

Compatible with major inverter brands such as Sunsynk, Deye, Victron, Growatt, SMA, Goodwe, Solis, Luxpower, and more.

Key Features

• Complete Load Shedding Backup system – inverter + batteries

• Dual MPPT inverter optimizes multiple solar arrays

• High-capacity Shoto Lithium Battery storage

• Fast charge and discharge for emergency power

• Scalable and modular for future expansion

Key Benefits

• Continuous power supply during load shedding or outages

• Reduces electricity costs through solar self-consumption

• Safe, long-life lithium iron phosphate battery technology

• Quiet, efficient inverter operation with intelligent cooling

• Flexible installation for homes, offices, and small businesses

Why Choose Ehumu?

Ehumu is a trusted provider of premium Load Shedding Backup solutions. By choosing Ehumu, you get:

• High-quality Shoto Lithium Batteries with long warranties

• Reliable hybrid inverter technology for consistent power

• Expert guidance and installation support

• Energy systems designed to meet South African conditions

Ensure uninterrupted electricity with a complete Load Shedding Backup system from Ehumu.

Package Includes

• 1 × Sunsynk 8kW Hybrid Inverter (SG05LP1 EU SM2)

• 2 × Shoto HP10-BOX5 Pro 5.12kWh Lithium Batteries

Warranty & Installation

The Shoto Lithium Battery comes with a 10-year warranty when installed correctly. Installation must be done by a registered wireman or master electrician, comply with SANS 10142, and include a valid Certificate of Compliance (COC). Warranty claims require proof of installation.
