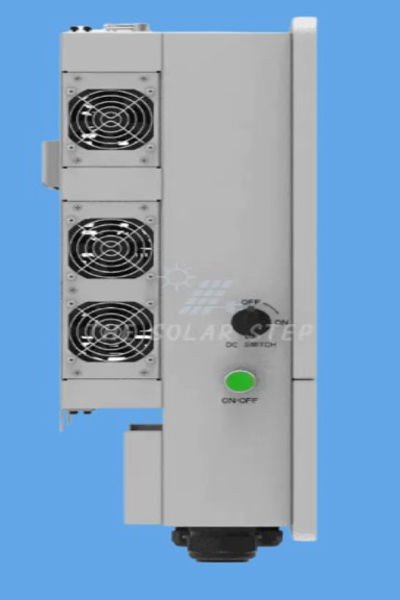

DEYE 8KVA Hybrid Inverter MPPT LV with WiFi

DEYE 8KVA Hybrid Inverter MPPT LV with WiFi

Description:

This hybrid inverter with 8 kW of power is a flexible and effective option for solar energy systems used in homes and small businesses. It is made for performance, dependability, and simplicity of use. It has dual MPPT tracking, supports a variety of battery kinds, and offers quick, intelligent energy management through internet-based monitoring.

Efficiency and Performance

• Rated power output: 8000 W
• Highest output: 8800 W
• Power surge: two times the rated output (10 seconds)
• The greatest inverter efficiency is 97. 6%.
• Weighted average for Europe: 97% efficiency
• The effectiveness of MPPT tracking is 99. 9%.
• With a DC/AC ratio of 1. 3, it can handle a self-consumption ratio of up to 80%.
• Designed with dual-sided PV modules in mind

Battery Compatibility

• lead-acid and lithium-ion batteries are supported
• Battery voltage range: 40 to 60 volts
• Current for charging/discharging: up to 190 amps
• three-stage charging with equalization
• lithium battery BMS autoadaptation
• External temperature sensor, if desired

Solar PV Input

• Maximum DC input: 10,400W
• PV input voltage range: 100 V to 500 V (rated at 370 V)
• Range of MPPT operation: 125V – 425V
• Beginning voltage: 150 V
• Two MPPTs with a 2+2 string arrangement
• Input current to PV: 18A + 18A

Characteristics of the Grid and AC Output

• AC output: 120/240V (split phase), 208V (2/3 phase), 230V (single phase)
• Frequency: 50/60Hz autoadjust
• Rated output current: 33. 4A / 35A
• 38. 3A / 40A is the maximum output current.
• Uninterrupted passthrough: 50 A
• Grid type: Compatible with single, split, and 2/3 phase
• THD: under 3% (linear load under 1. 5%)

Operation that is both intelligent and dependable

• physical buttons and an LCD touchscreen for simple setup
• With an available WiFi connector (WiFi dongle is an option)
• remote surveillance using an app and a browser
• Grid-tied to off-grid auto switch in less than 5 milliseconds
• The zero export mode has a response time of less than 200 milliseconds.
• charge/discharge schedule that can be programmed
• Accepts DC inputs from solar and wind sources
• Extendable: Up to 16 parallel inverters
• Retrofit-ready for current solar systems

Integrated safeguards

• Identifying arc faults (non-EU models)
• lightning protection for photovoltaic systems
• Protection against polarity reversal and anti-islanding
• Monitoring of residual currents
• protection against overvoltage, overcurrent, and short circuits
• Detection of insulation resistance

Compliance and Design

• Cooling: Active system using fans
• Low noise: <30 dB
• Communication: BMS integration through RS485 and CAN
• IP65 is the protection rating, which means it's ready for outside use.
• Weight: 32 kg
• Size: 680 x 420 x 233 mm
• Installation: Wall-mounted

Certifications

• IEEE1547, VDE0126, AS4777, NRS2017, G98/G99, and UL1741 are the grid standards.
• Security: IEC621091/2
• FCC Part 15 Class B, EN6100061, and EN6100063 are the EMC compliance standards.

Warranty

5-year warranty on repairs.

Important: Only a licenced electrician should carry out the installation. To support warranty claims, a valid COC and installation images may be necessary. All installations must comply with SANS 10142.
