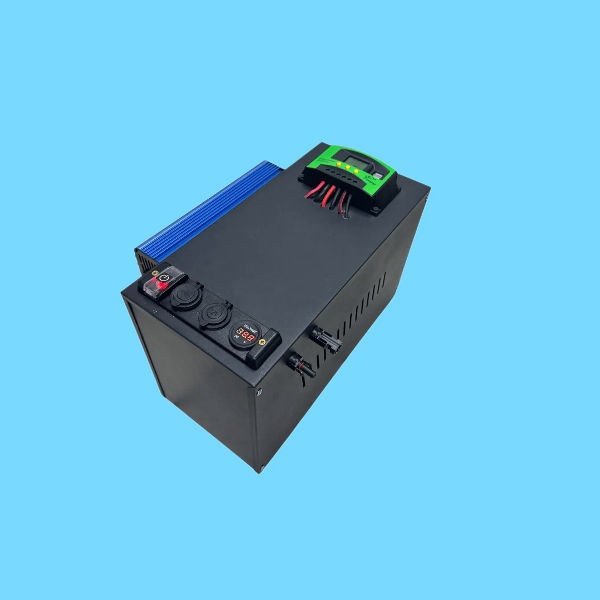

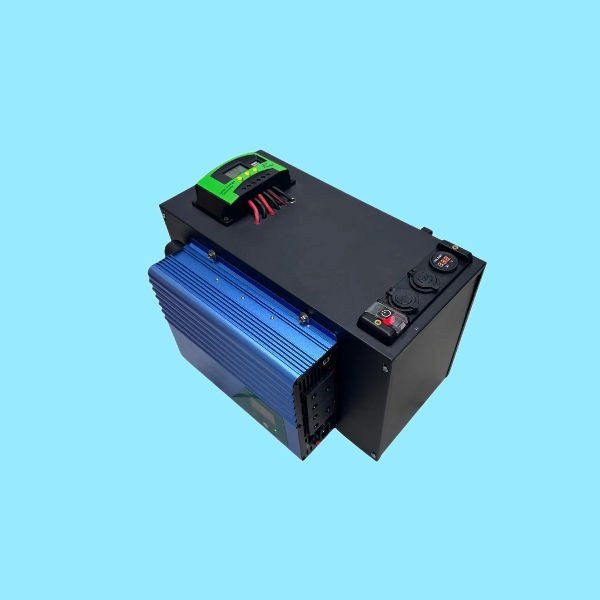

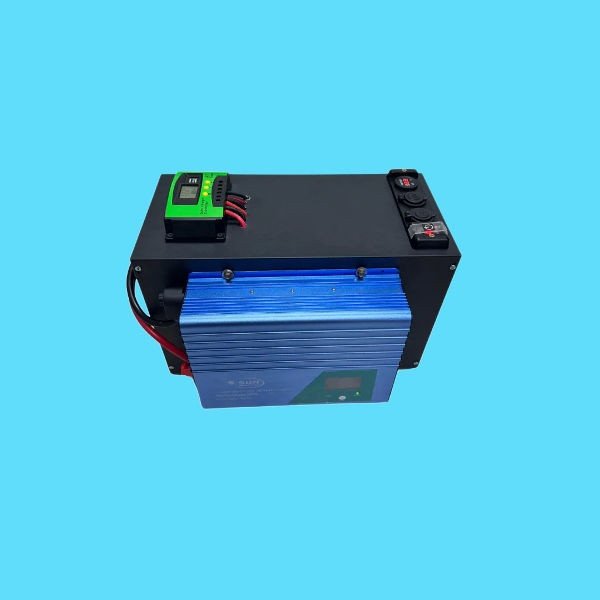

Off-Grid Portable 100AH 12V Lithium Solar Kit with 1500W Inverter & 100W Solar Panel

Off-Grid Portable 100AH 12V Lithium Solar Kit with 1500W Inverter & 100W Solar Panel

Small solar power system independent of the grid

Ideal for camping, outdoor activities, or as a backup power source, this off-grid solar kit is intended for low-duty power requirements. It has a 1500W inverter for powering lights, charging gadgets, and running modest appliances, as well as a 100Ah 12V lithium battery and a 150W solar panel.

Remember that the device needs 23 hours to put together!

The System's Operation:

Solar panel with a 100W 12V output

Uses MC4 connectors to connect to a battery for charging after absorbing sunlight and producing DC electricity. (AC PLUG INCLUDED TO CHARGE ON GRID AS WELL IF NEEDED)

Connections with MC4

Establish a weather-resistant, secure connection between the panel and the charge controller.

Solar Charge Controller with PWM (20A)

Controls the voltage and current from the solar panel in order to charge the battery in a safe manner.

12V 100Ah LiFePO4 Battery + Battery Box

Utilizes lithium to provide long life and thorough discharge protection while storing solar energy for usage at any time.

Inverter with a changed sine wave of 1500 watts

transforms the battery's 12V DC power into 230V AC for use with household appliances.

Voltage display, USB ports, and 12V lighter outlet

Monitor battery voltage in real time, charge phones and tablets, and easily power 12V accessories.

2 AC Plug Connections

makes it simple to connect a multi-plug for powering several little gadgets at once.
