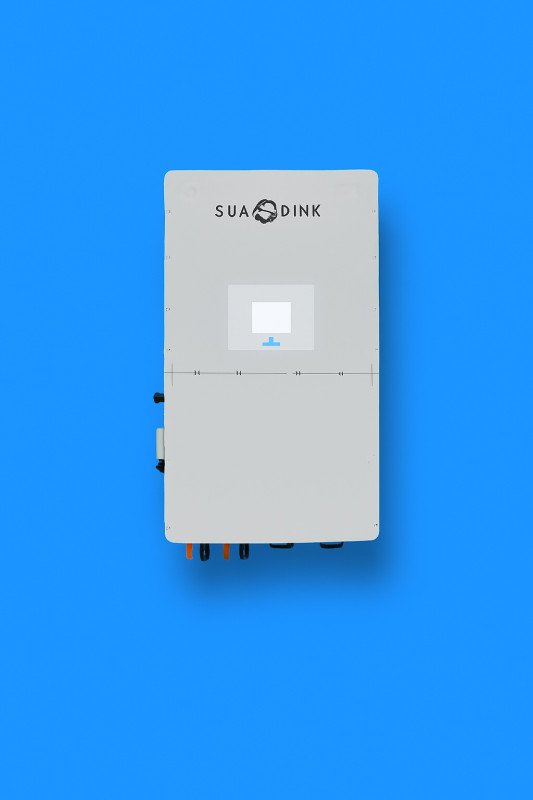

Sunsynk 5.5KW Hybrid Inverter with WiFi Dongle

Sunsynk 5.5KW Hybrid Inverter with WiFi Dongle

HYBRID INVERTER WITH 5KW SUNSUNK

Increased output.

• By raising the self-consumption ratio by as much as 80%, you may lower your electricity cost.
• Ideal for doubleside PV modular, with a DC/AC ratio of 1. 3.
• Two MPPT designs, each having a maximum efficiency of 97. 6%.

Easy to use.

• Simple operation with buttons and an LCD touch screen.
• Works with lead acid and lithium ion batteries.
• Mobile app and web browser monitoring are supported.

Dependable.

• Leakage current protection, Antiislanding protection, PV lighting protection, etc.
• Make sure the system operates within 724 hours and back up the store's energy needs with DG when necessary.
• IP65 protection rating, suitable for usage both indoors and outdoors.
• Within 5 milliseconds, automatically switch between on-grid and off-grid mode.
• The rapid response time of 200 ms in zero export mode, as well as the lack of export capability.

Intelligent.

• schedule for charging and discharging that is programmable.
• Solar panels and wind turbines can both be linked as DC input power.
• For increased system power, a maximum of 16 units may be connected in parallel.
• existing solar system retrofitted with energy storage system.

Data from battery input

• Lead-acid or lithium-ion battery type
• Voltage range of the battery (V): 4060 V
• Maximum Charging Current (A): 120 A
• Maximum Discharge Current (A): 120A
• 3 steps/equalization is the charging curve.
• Temperature sensor outside: not necessary
• Lithium Battery Charging Strategy: Adapting to BMS on Its Own

Data from a PV String Input

• 6500 W is the maximum input power for DC.
• PV input Voltage (V): 370V (100V–500V).
• 125425V is the MPPT range (V).
• Voltage at startup (V): 150V.
• 11A + 11A is the PV input current in amperes.
• The number of MPPT trackers is two.
• MPPT Tracker's Number of Strings: 1+1

Information on the AC Output

• Rated AC Output and UPS Power (W): 5000W
• Maximum AC Output Power (W): 5500W
• Peak Power (Offgrid): Two Times Rated Power, 10 Seconds
• Rated AC output current (A): 21. 7. 4A
• Max. AC Current (A): 25A
• Maximum Continuous AC Passthrough (A): 35 A.
• Output Frequency and Voltage: 50 Hz, 240 Vac
• THD less than 3% (linear load less than 1. 5%) is the grid type.
• Current Harmonic Distortion: THD is less than 3% (Linear load is less than 1. 5%).

Effectiveness

• Maximum Efficiency: 97. 60%
• 96. 50% Euro Efficiency
• Efficiency of MPPT: 99. 90%

Defense

• Integrated (Except European Type) PV Arc Fault Detection
• Integrated PV Input Lightning Protection
• Integrated Anti-Islanding Protection
• Integrated Reverse Polarity Protection for PV String Input:
• Integrated Detection of Insulation Resistance
• Integrated Residual Current Monitoring Unit
• Integrated Output Over Current Protection
• Integrated Output Shorted Protection
• Integrated Output Over Voltage Protection

Standards and Certifications

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC621091, IEC621092
• FCC 15 class B, EN6100061, and EN6100063 are the EMC standards.

General Information

• Operating Temperature Range ( C ): 25–60 C, with a derating of over 45 C
• Cooling: Fan
• dB level of noise: less than 30
• BMS communication: RS485; CAN
• Weight (kg): 20. 5
• Size (mm): 580 by 330 by 208
• Level of Protection: IP65
• Installation Method: Wall-mounted
• Warranty: Five Years

Warranty:

A competent electrical wireman or Master electrician who is lawfully registered with the Department of Labor must install all inverters and batteries. Once installed, the backup or solar system must be covered by a valid electrical certificate of compliance (COC) that is exclusive to that installation. The installation must adhere to ALL aspects of SANS 10142. Any warranty claim that lacks installation photos, a valid COC, or proof that a competent wireman/master electrician performed the installation may be denied, rendering the warranty claim invalid and void.
