EcoVolt 5000W Hybrid Inverter + 5.12kWh SHOTO Li-ion Battery (48V) + Wi-Fi Enabled

EcoVolt 5000W Hybrid Inverter + 5.12kWh SHOTO Li-ion Battery (48V) + Wi-Fi Enabled

DATA OUTPUT

• Rated power: 5000 W / 5000 VA.
• Yes, parallel capacity is available.
• 230/240, Split phase 220/110 Vac is the typical output voltage.
• Typical output frequency is 50/60 Hz.
• Peak power: 10,000 VA.
• Changeover Time: 10 milliseconds.
• Waveform: A pure sine wave.
• Kind of Battery: Lithium/Lead Acid.
• Normal Voltage: 51. 2V/48V.
• Maximum voltage for charge: 59 V.

DATA ON THE SUN

• 3200W/3200W is the maximum suggested PV power.
• 2: MPPT Tracker.
• Maximum Open Circuit Voltage for PV: 480 Vdc.
• The voltage range for MPPT is 100385 volts DC.
• Maximum Solar Charging Current: 100A.
• Maximum Solar Input Current: 13A/13A.
• Yes, the MPPT charger is parallel.

DATA FROM THE GRID

• Usual Voltage: 230 Vac.
• AC Voltage Range: 110-280 volts.
• Maximum Charge Current: 60 Amps.
• Frequency Range: 50/60 Hz (Auto Sensing).

INTERFACE

• Display: LCD+LED.
• Communication with Lithium Batteries: CAN/RS485.
• Dry Connection and RS485: YES/YES.
• Wifi/GPRS: YES/YES.
• 2-YEAR WARRANTY

SPECIFICATIONS

• Measurements (W/H/D): 330x504x135 mm.
• 14 kg in weight.
• IP20 is the degree of protection.
• 5%–95% relative humidity (non-condensing).
• Temperature Range of Operation: 0°C to 50°C.
• Between 15°C and 60°C is the ideal storage temperature.
• suitable for on-grid, off-grid, self-consumption, and backup power scenarios.
• MPPT ranges 120V–385V, integrated with two 2 MW solar charge controllers.
• 5 kW rated power and 1 power factor
• In Ongrid and Offgrid modes, be able to operate with or without a battery.
• Can operate the generator remotely thanks to its separate input interface.

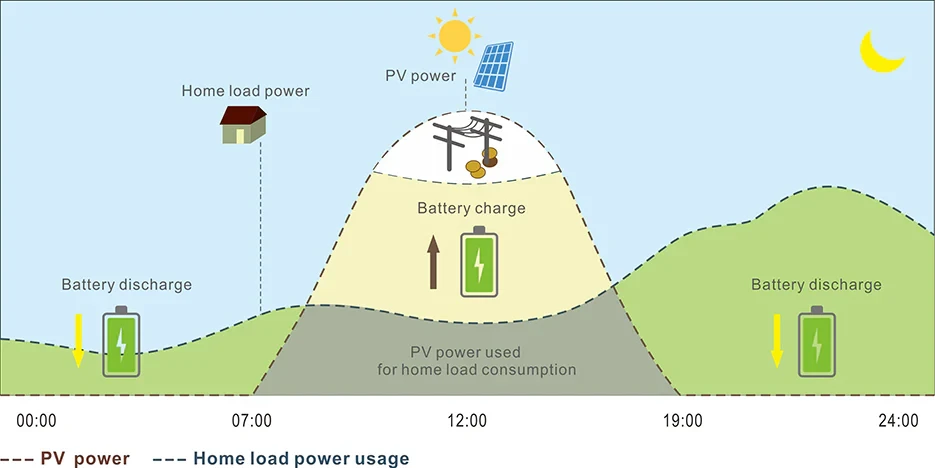

• Loads can be powered simultaneously by solar and utility grids
• Up to 9 devices can be paralleled with an integrated sophisticated parallel function.
• Liion battery BMS communication can be supported via CAN/RS485.
• Free iOS/Android app, support website, setup and firmware updates, and remote monitoring via Wi-Fi/GPRS are all included.

The Luxpower 5kW OffGrid Inverter, Luxpower SNA 5000, and Luxpower ECO Hybrid SNA 5K are just a few of the high-quality, low-cost offgrid inverters that Luxpower sells. These inverters are made to supply power to homes with or without grid electricity and are compatible with a wide range of battery types, including lead-acid and lithium batteries.

The Luxpower 5kW off-grid inverter is a DC to AC power inverter that maximizes power generation from solar panels by including an integrated battery charger and MPPT solar charge controller. Additionally, it is generator-ready and may be used as an off-grid power source, liberating users from the grid.

Additionally, the Luxpower 5kW offgrid inverter comes with an LCD+LED display as well as WiFi/GPRS and RS485/Dry Connector for communication. It is made for usage in a variety of humidity and temperature conditions, and it has a two-year guarantee.

List of Battery Compatibility

• BYD
• Dyness
• Hubble
• SA Lithium Batteries
• PylonTech
• Shoto
• Revo.

5. 12 kWh Shoto Lithium Battery Specs

The Shoto 5. 12 kWh lithium-ion battery has a 90% DOD and a 10+ year design life with over 5000 cycles. The rack-mounted construction design cuts down on installation time and expense.

Attributes

• Model: 51. 2100 (SDC10Box 5)
• Nominal Capacity (kWh): 5. 12
• Rated capacity: 100 Ah
• Operating voltage range: 42 V to 57. 6 V
• Voltage for float charging: 54 volts; voltage for boost charging: 57. 6 volts.
• 90% Charge Depth
• 4. 6 kWh is the usable capacity.
• Voltage for charging: 57. 6 V
• Discharge Voltage: 48 volts
• Voltage at its nominal value: 51. 2 volts
• The maximum number of parallel units is 16.
• Cycle Life: at 25°C, at least 5000 cycles
• Humidity: 5–95%
• Altitude: ≤ 4000 m
• Technique for installation: wall mounting or rack mounting.
• Terminal Stud: M8

Inverters that work together

• Growatt, Goodwe, Victron, Deye, Sofar, Luxpower, etc.

Guarantees

• TWO YEARS FOR THE INVERTER
• 5-YEAR BATTERY
