11kVA Home Solar Backup System with Ecco Hybrid Inverter, Lithium Battery & JA Solar Panels

Ensure uninterrupted power for your home or small business with this reliable home solar backup solution. This complete off-grid kit combines the 11kVA Ecco MPPT Hybrid Inverter, a 5.12kWh Ecco Lithium Battery (100Ah), and 6 high-efficiency 595W JA Mono-Crystalline Tier-1 solar panels.

Designed to provide seamless energy during load-shedding, this solar backup system delivers efficient performance, long-lasting durability, and easy scalability.

Perfect

• Residential homes and family households

• Small farms or agricultural properties

• Small businesses and workshops

• Off-grid properties and backup power solutions

• Load-shedding protection and energy independence

This solar backup system is built to give you peace of mind, whether the grid is stable or not.

Key Features

• 11kVA / 11kW Ecco MPPT Hybrid Inverter with pure sine wave output

• Built-in dual MPPT solar charge controller for maximum solar harvesting

• 5.12kWh Ecco Lithium Battery with intelligent BMS protection

• 6 × 595W JA Mono-Crystalline Tier-1 Solar Panels for high efficiency

• Optional Wi-Fi monitoring for remote system management

• Pure sine wave output safe for all appliances

• Expandable battery system for growing energy needs

This home solar backup kit is designed for reliability, safety, and future scalability.

Key Benefits of Using

• Reliable electricity during load-shedding and blackouts

• Reduced dependency on the grid for lower electricity bills

• Long battery life with advanced BMS for safety

• Clean, silent, and maintenance-free power generation

• High solar input for fast battery charging and continuous backup

• Modular and expandable design to support future energy demands

Choosing this home solar backup system ensures consistent power when it matters most.

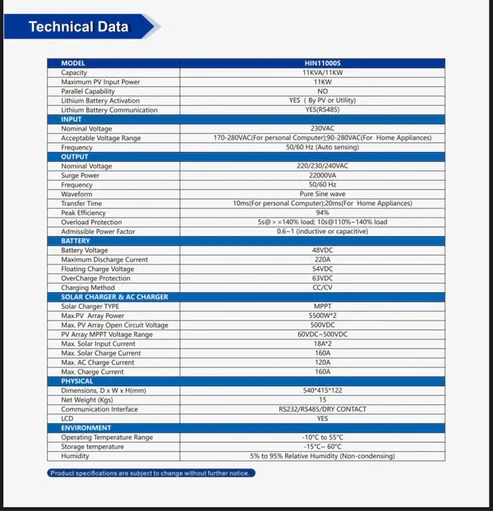

11kVA / 11kW Ecco MPPT Hybrid Inverter Specifications

Inverter Overview

The Ecco HIN11000S is a high-performance MPPT hybrid inverter that forms the heart of this solar backup system. It supports LiFePO₄ batteries, offers wide voltage compatibility, and ensures fast transfer during outages.

Technical Specifications

• Model: HIN11000S

• Capacity: 11kVA / 11kW

• Output Voltage: 220/230/240VAC

• Output Waveform: Pure Sine Wave

• Peak Efficiency: 94%

• Surge Power: 2200VA

• Transfer Time: 10ms (PC) / 20ms (home appliances)

• Built-in MPPT Chargers: 2

• Maximum PV Input: 500VDC, 11kW

• Lithium Battery Activation: PV or Utility

• Battery Communication: RS485

• Optional Wi-Fi Monitoring

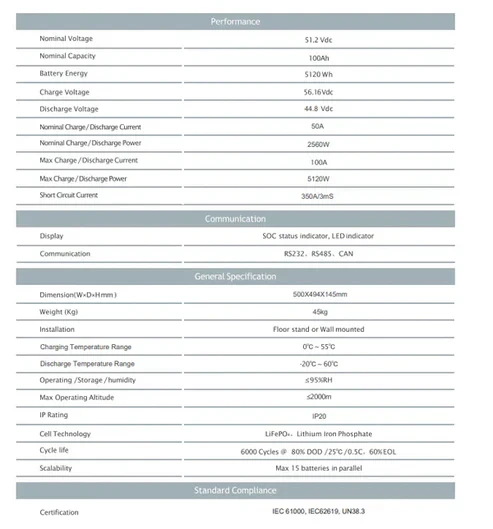

Ecco 5.12kWh 51.2V Lithium Battery Specifications

Battery Overview

The Ecco ELV51100 is a high-capacity lithium battery designed to provide stable energy storage for your solar backup system.

Technical Specifications

• Battery Type: LiFePO₄

• Voltage: 51.2V

• Capacity: 100Ah

• Total Energy: 5.12kWh

• Charge Voltage: 56.16V

• Discharge Cutoff Voltage: 44.8V

• Dimensions: 500 × 494 × 145mm

• Weight: 45kg

Advanced BMS Features

• Monitors voltage, current, and temperature in real-time

• Automatic cell balancing for longer battery lifespan

• Protection against overcharge, over-discharge, overcurrent, and temperature extremes

• Supports parallel expansion for larger energy needs

595W JA Mono-Crystalline Solar Panel Specifications

Panel Overview

Get maximum solar power with the 595W JA Mono-Crystalline panels. These Tier-1 panels are trusted worldwide for high efficiency, durability, and reliable performance under all weather conditions.

Panel Specifications

• Model: JAM72D40-595/MB

• Output: 595W per panel

• Cell Type: Mono-Crystalline

• Tier-1 quality brand

• Designed for residential, commercial, and project installations

⚠️ Note: Solar panels are couriered at buyer’s risk.

Package Includes

• 1 × 11kVA Ecco MPPT Hybrid Inverter (48V)

• 1 × 5.12kWh Ecco Lithium Battery (51.2V, 100Ah)

• 6 × 595W JA Mono-Crystalline Tier-1 Solar Panels

Warranty & Installation Requirements

• Battery & Inverter: 5-Year Limited Warranty

• Solar Panels: 15-Year Product Warranty

• Installation must be performed by a qualified electrical wireman or Master Electrician

• Valid Certificate of Compliance (COC) required

• Installation must comply with SANS 10142 regulations

• Warranty claims without COC, installation photos, or proof of qualified installation may be rejected

Why Choose Ehumu ?

At Ehumu, we specialize in reliable home solar backup systems designed for real-world performance. Our kits combine Tier-1 solar panels, high-efficiency inverters, and long-lasting lithium batteries, ensuring uninterrupted power and energy independence. With expert installation guidance and warranty-backed components, Ehumu delivers a home solar backup solution you can trust.
